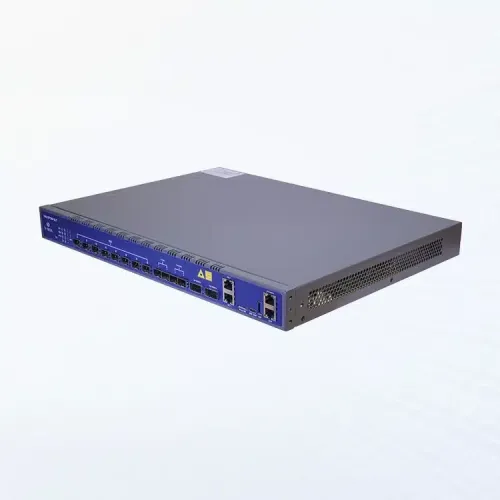

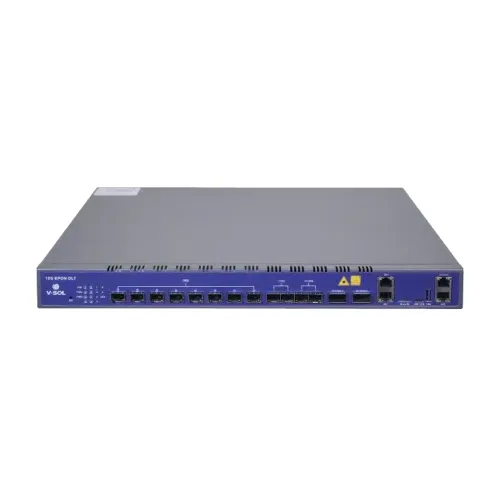

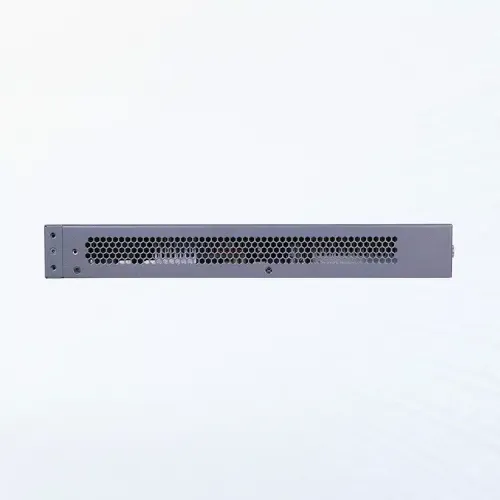

Vsol V1600D8 8 Port EPON OLT
Short Description
- Model: V1600D8
- 10G EPON Ports: 8 Ports
- Port Speed: 1.25G
- Transmission Distance: 20KM
- Supports 9/125μm Single-Mode Fiber
Tk 84,000
1
V-SOL V1600D8 8 Port EPON OLT: High-Performance and Reliable Networking Solution
The VSOL V1600D8 8 Port EPON OLT is meticulously engineered to deliver outstanding performance and reliability in modern networking environments. This network switch is designed to operate flawlessly across a wide temperature range from 0°C to +50°C, ensuring consistent performance even in challenging conditions. Its storage temperature range of -40°C to +85°C guarantees durability and longevity, making it suitable for various scenarios. [ez-toc]Key Features and Specifications
- Low Power Consumption: With a power usage of just 45W, the V-SOL V1600D8 ensures energy efficiency without compromising performance.
- Versatile Power Supply Options: Supports AC (100~240V, 47/63Hz) and DC (-48V) power inputs, and includes a Battery Backup Unit (BBU) for D4-BT and dual power module hot backup for redundancy.
- Lightweight and Robust Design: Weighing 4.5kg (in single AC power mode), it strikes a balance between durability and manageability, facilitating easy installation and maintenance.
Superior Transmission Capabilities
- PON Port Specifications:
- Transmission Distance: Capable of reaching up to 20KM.
- Port Speeds: Offers EPON (Ethernet Passive Optical Network) port speeds of 1.25G upstream and downstream.
- Connectors: Utilizes SC/UPC connectors and supports 9/125μm Single-Mode Fiber (SMF), ensuring compatibility with standard fiber optic cable infrastructure.
- Wavelengths: TX 1490nm and RX 1310nm ensure optimal signal transmission and reception.
- Performance Metrics: Features an RX sensitivity of < -32dBm and a saturating optical power of -8dBm, enhancing stability and performance.
