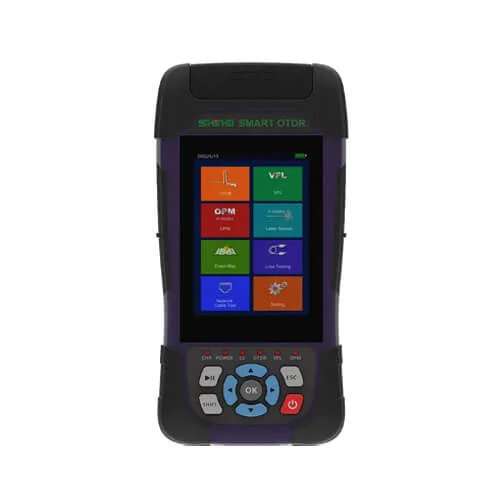

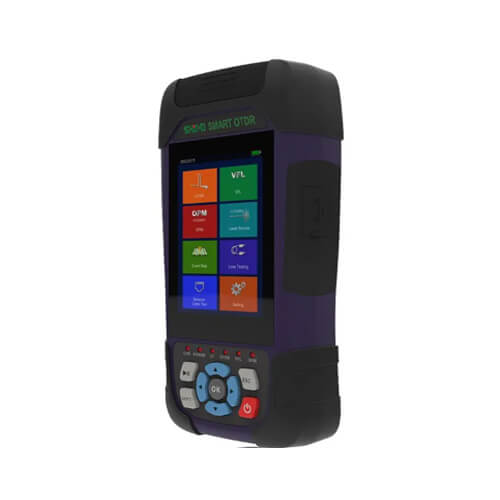

SMRT100 Smart Hand-held OTDR

SMRT100 Smart Hand-held OTDR - Advanced Optical Testing Tool for Professionals

If you're looking for a compact, powerful, and versatile optical time-domain reflectometer (OTDR), the SMRT100 Smart Hand-held OTDR is the ideal solution. Designed to meet the needs of fiber optic professionals and network engineers, this innovative tool combines advanced technology with user-friendly features. In this comprehensive product description, you'll discover why the SMRT100 is a top choice for field testing and maintenance. Available now at Best Computer Hub, the SMRT100 offers unparalleled accuracy and reliability for fiber optic testing in Bangladesh. It integrates eight of the most commonly used functions, delivering everything you need in one lightweight, portable device. [ez-toc]

Key Features of the SMRT100 Smart Hand-held OTDR

1. 8-in-1 Multifunctionality: The SMRT100 combines the functionality of the following tools:

• OTDR (Optical Time-Domain Reflectometer)
• Event Map
• Laser Source
• Optical Power Meter
• Visual Fault Locator (VFL)
• RJ45 Line Tester
• Line Finding Tool
• Flashlight for Field Use

This integration eliminates the need to carry multiple devices, streamlining your workflow and increasing efficiency in the field. 2. High-Quality Display: Equipped with a 3.5-inch color capacitive touch screen, the SMRT100 supports multi-touch functionality, providing a responsive and intuitive user interface. The vibrant display ensures visibility in a variety of lighting conditions, making fieldwork more manageable. 3. Long Measuring Range: With a measuring range of up to 90km and an event dead zone of just 2.5 meters, this OTDR ensures high-resolution fault location and accurate fiber characterization over long distances. 4. Ample Storage Capacity: The device can store up to 100,000 test data records, with 1,000 stored internally and 99,000 accessible via an SD card. This massive storage capacity enables users to maintain comprehensive test records for future reference and analysis. 5. Smart Charging Options: Supporting both Type-C and wireless charging, the SMRT100 ensures maximum convenience and flexibility. Whether you're in the field or at the office, charging is never a problem. 6. Portability and Durability: Thanks to its pocket-sized design and weight of just 340g, this OTDR is easy to carry. The shockproof and drop-resistant build, along with a hidden optical port design, ensures durability in rugged environments. 7. Long Battery Life: A powerful 4000mAh battery offers over 20 hours of working time, enhanced by an intelligent power-saving mode. It is perfect for extended use in the field. 8. Smart File Format & Auto Analysis: Test results are saved in the standard SOR file format, compatible with industry software. The SMRT100 also features one-button intelligent detection and automatic data analysis, making it accessible even to less experienced technicians.

Technical Specifications

Fiber Compatibility: G.652D standard optical fiber Event Dead Zone: 2.5 meters Attenuation Dead Zone: 8 meters Measuring Range: 100m to 90km with selectable settings: 100m, 500m, 1km, 2km, 5km, 10km, 20km, 40km, 60km, and 90km Pulse Width Options: 5ns to 10µs (10 settings) Accuracy: ±(1m + Sampling interval + 0.005% x measuring range) Linearity: ±0.2 dB/dB Sample Points: Maximum 20,000 Sampling Resolution: 25cm to 8m Loss Resolution: 0.001dB Range Resolution: 0.001m Refractive Index Range: 1.0000 to 2.0000 Reflection Accuracy: ±3dB Safety Level: Class 3B Laser

Built-in Modules and Capabilities

Optical Power Meter:

• Wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650nm
• Range A: -70~+10dBm
• Range B: -50~+26dBm
• Frequency Detection: 270Hz, 330Hz, 1kHz, 2kHz
• Uncertainty: ±5%
• Connector: LC/SC/APC or UPC (Optional ST/FC)

Laser Source:

• Wavelengths: 1310/1550nm
• Type: FP-LD
• Power Output: -5dBm ±2dB
• Connector: FC/SC/ST

Visual Fault Locator (VFL):

• Output Power: ≥10mW

RJ45 Tester:

• Supports line sequence and line finding

Additional Tools:

• Flashlight for low-light environments
• Intelligent power-saving mode to extend battery life

Environmental & Physical Specifications

Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to +70°C Humidity Tolerance: 0% to 90% (non-condensing) Dimensions: 17cm x 12cm x 3cm Weight: 340 grams Battery: 4000mAh / 3.7V (rechargeable) Charging Port: USB Type-C

Who Should Use the SMRT100?

The SMRT100 is perfect for:

• Fiber optic network installers and maintainers
• Telecom engineers
• ISPs and network operators
• Data center technicians
• IT infrastructure professionals
• On-field service teams needing portability

Thanks to its comprehensive feature set and simple interface, even entry-level technicians can perform advanced testing with confidence.

Why Buy the SMRT100 from Best Computer Hub?

Best Computer Hub is your go-to destination for advanced optical fiber tools and network testing equipment in Bangladesh. When you buy from us, you benefit from:

• Competitive pricing
• Genuine product guarantee
• Expert technical support
• Warranty and after-sales service
• Fast delivery anywhere in Bangladesh

We are dedicated to delivering high-performance networking tools that keep your infrastructure running smoothly. The SMRT100 Smart Hand-held OTDR is just one example of the many quality products available at Best Computer Hub.

Price of SMRT100 Smart Hand-held OTDR in Bangladesh

The current price of the SMRT100 Smart Hand-held OTDR in Bangladesh is 43,000৳. You can order online from our website or visit our showrooms to see the product in person. Don’t forget to follow our official Facebook Page and WhatsApp updates for special deals, new arrivals, and technical tips.

Final Thoughts

The SMRT100 Smart Hand-held OTDR is a powerful, portable, and multifunctional tool that delivers everything you need for high-precision fiber optic testing. From long-range measurements to intuitive operation and smart data management, this device is engineered to enhance your productivity in the field. Order your unit today from Best Computer and take your fiber testing capabilities to the next level. Whether you're maintaining an existing network or installing new lines, the SMRT100 ensures optimal performance and peace of mind.
