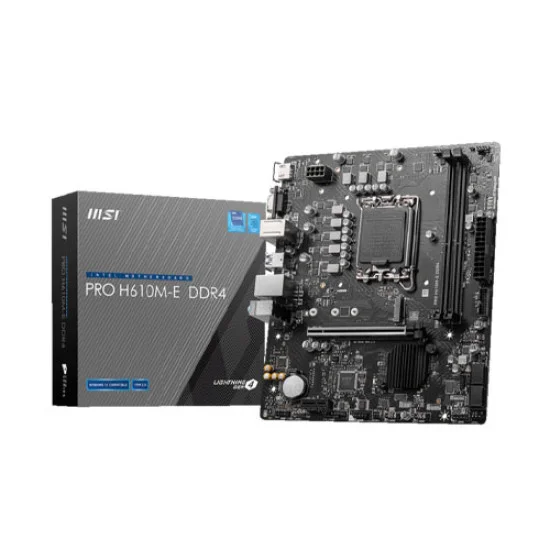

MSI PRO H610M-E DDR4 MOTHERBOARD
Short Description
- Supports 12th Gen Intel Core, Pentium Gold And Celeron Processors
- LGA 1700 Socket
- Supports DDR4 Memory, Up To 4600+(OC) MHz
- PCIe 4.0, Lightning Gen4 X4 M.2 With M.2 Shield Frozr
- 2.5G LAN: Upgraded Network Solution For Professional And Multimedia Use.
Tk 9,900
1

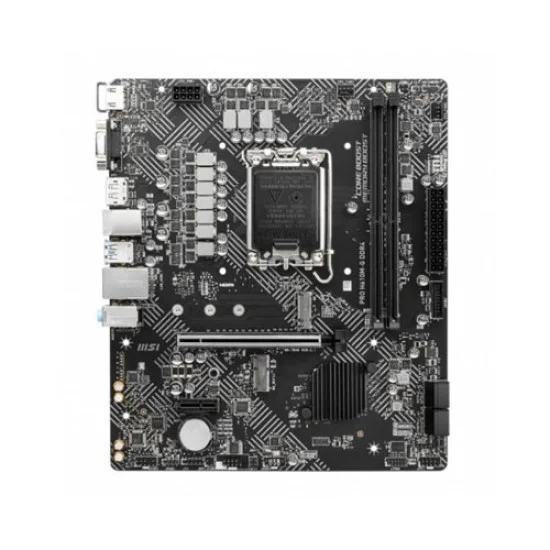

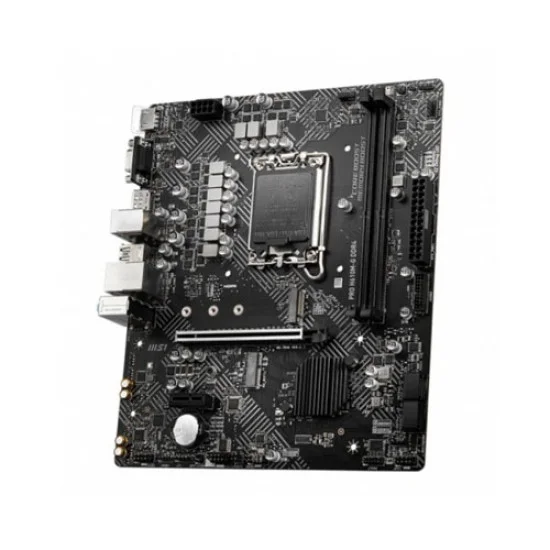

MSI PRO H610M-E DDR4 Motherboard
The MSI PRO H610M-E DDR4 Motherboard is a reliable and feature-packed solution designed for professional use. Built with the Intel H610 chipset and a compact form factor, this motherboard supports 12th Gen Intel Core processors, Pentium Gold, and Celeron processors, offering a powerful yet space-efficient foundation for building desktop systems. [ez-toc]Memory and Storage Capabilities
The MSI PRO H610M-E supports DDR4 RAM with dual-channel mode and a maximum capacity of 64GB. It includes two memory slots that support memory speeds of 2133, 2666, 2933, and 3200 MHz. Additionally, the motherboard features four SATA 6Gb/s ports and one M.2 slot, providing flexible storage options and high-speed data transfers.Comprehensive Connectivity Options
This motherboard offers a variety of ports and slots for enhanced connectivity:- USB Ports: Four USB 3.2 Gen 1 ports and two USB 2.0 ports on the rear panel.
- Display Ports: One HDMI port and one VGA port for multi-display support.
- Audio Ports: High-definition 7.1-channel audio system powered by the Realtek ALC892/ALC897 codec.
- LAN: Intel I219V 1Gbps LAN controller for reliable network connectivity.
Advanced Cooling Solutions
The MSI PRO H610M-E motherboard is equipped with two fan headers supporting both DC and PWM modes, allowing complete fan control. You can adjust fan speeds manually or automatically via BIOS or third-party software to balance performance and noise.Enhanced Audio Experience
- Audio Boost: Provides an immersive listening experience with advanced hardware and software features.
- Isolated Audio Design with LED Border: Ensures superior audio signal with physically isolated circuitry.
- Separated Audio Layers: Offers improved sound quality for left and right audio channels.
- De-Pop Protection: Eliminates loud popping sounds when plugging or unplugging devices.
- Dedicated Audio Processor: EMI-shielded HD audio processor for enhanced sound quality.
- Quality Capacitors: Golden audio capacitors ensure reliable and clear sound output.
Additional Features for Maximum Efficiency
- Core Boost: Combines layout design and optimization for faster, undistorted current delivery to the CPU.
- EZ Debug LED: Onboard LEDs for quick and easy system diagnostics.
- X-Boost: Optimizes USB storage device performance via MSI's software.
- Command Center: Software for tuning settings, maximizing performance, and optimizing cooling features.
- Live Update: Automatically downloads and installs the latest drivers, BIOS, and software updates.
- RAMD isk: Creates a virtual drive using system memory for fast software and app loading.
- Steel Armor: Reinforced PCIe slot increases durability and prevents GPU sag.
MSI PRO H610M-E DDR4 Motherboard Review
The MSI PRO H610M-E DDR4 Motherboard offers impressive performance, efficiency, and value, making it a compelling choice for users seeking a reliable and feature-rich motherboard. Designed with the Intel H610 chipset and a compact mATX form factor, it balances power and space efficiency.Key Features:
- Chipset: Intel H610
- Processor Compatibility: 12th Gen Intel Core, Pentium Gold, and Celeron processors
- Memory: Up to 64GB DDR4, dual-channel mode, memory speeds of 2133/2666/2933/3200 MHz
- Storage: Four SATA 6Gb/s ports and one M.2 slot
- Connectivity: HDMI, VGA, USB 3.2 Gen 1, USB 2.0, Realtek ALC892/ALC897 audio codec, Intel I219V 1Gbps LAN
- Cooling: Two fan headers supporting DC and PWM modes
