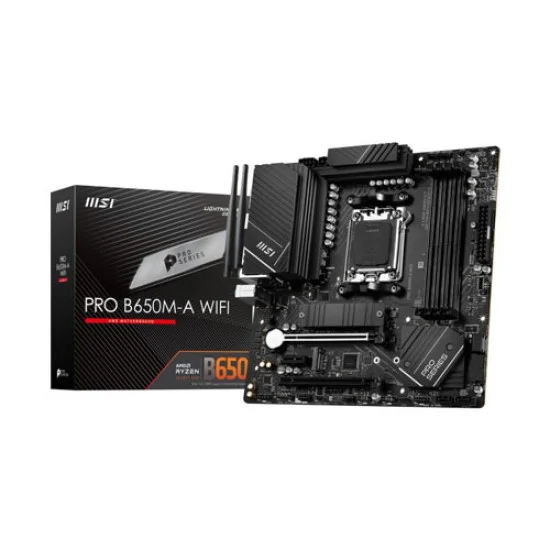

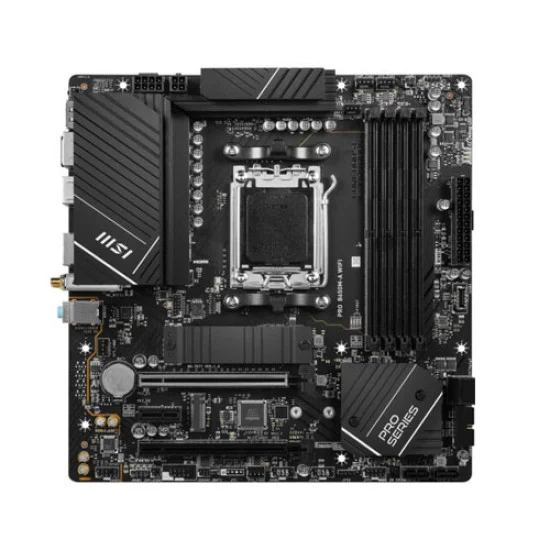

MSI PRO B650M-A WIFI DDR5 Motherboard

MSI PRO B650M-A WIFI DDR5 Motherboard

The MSI PRO B650M-A WIFI DDR5 Motherboard is designed for gamers and professionals, offering a powerful platform for AMD Ryzen 7000 Series Desktop Processors in Socket AM5. With advanced features and reliable components, this motherboard delivers exceptional performance for high-demand applications. [ez-toc]

Key Features

Processor and Memory Support

• Socket: AMD AM5, compatible with Ryzen 7000 Series processors.
• Memory: Supports DDR5 memory with up to 128GB capacity and overclocking up to 6400+ MHz.

Audio and Network

• Audio: Realtek ALC897 Codec provides 7.1-channel high-definition audio for an immersive gaming and entertainment experience.
• Network: AMD Wi-Fi 6E module pre-installed in the M.2 (Key-E) slot for fast wireless connectivity, supporting MU-MIMO and multiple frequency bands (2.4GHz, 5GHz, 6GHz). Includes Realtek 8125BG 2.5G LAN for stable wired connections.

Connectivity

• USB Ports: USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type-A, and USB 3.2 Gen2 Type-C on the front panel.
• Display Outputs: HDMI and DisplayPort for external displays.
• Legacy Support: VGA and PS/2 connectors for older peripherals.

Expansion and Storage

• Expansion Slots: Two PCI-E x16 slots and one PCI-E x1 slot for graphics and utility cards.
• Storage: Four SATA III and two M.2 PCIe SSD interfaces for faster data transfer.

Cooling and Protection

• Cooling: Multiple fan connectors and an M.2 Shield Frozr heat sink to prevent thermal throttling.
• Protection: Steel Armor PCIe slot for heavy graphics cards, Double ESD Protection, and RGB LED connectors for customizable lighting.

User-Friendly Features

DIY Friendly

• Installation Enhancements: Double ESD Protection, Keep Out Zone, EZ Debug LED, and Driver Utility Installer suite.
• Windows 11 Certification: Ensures seamless installation and compatibility.

Performance and Efficiency

• PCIe 4.0 Technology: Supports data transfer speeds up to 64 Gb/s for M.2 storage and graphics cards.
• Dual-Channel DDR5 RAM: Handles memory frequencies up to 6000 MHz with EXPO support.

Software and BIOS

• MSI Center: Centralized application for system modification and monitoring, including Hardware Monitoring, System Diagnosis, Fan Center, and more.
• Mystic Light: Control RGB lighting effects for your system and peripherals.
• Click BIOS 5: Adjust motherboard parameters for performance, efficiency, and overclocking capabilities.
• Resizable Bar Technology: Streamlines GPU and CPU connection for smoother performance.

Enhanced Audio

• Audio Processor: High-quality HD audio with audio capacitors for clear sound.
• Channel Isolation: Prevents distortion and crosstalk.
• DE-POP Protection: Prevents loud popping sounds when connecting headsets.

The MSI PRO B650M-A WIFI DDR5 Motherboard is a top choice for high-performance gaming and professional use. Its support for AMD Ryzen 7000 Series processors, DDR5 memory, and robust connectivity options make it versatile for various computing needs. With advanced features like Wi-Fi 6E, 2.5G LAN, and comprehensive audio solutions, this motherboard ensures an efficient and immersive experience. The compact mATX form factor and competitive price point add to its value, making it a reliable investment for a powerful system build.
