MSI B760M PROJECT ZERO LGA 1700 I DDR5 MATX Motherboards

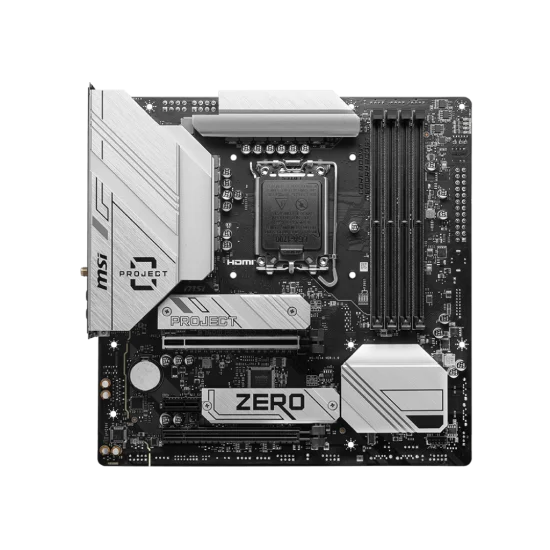

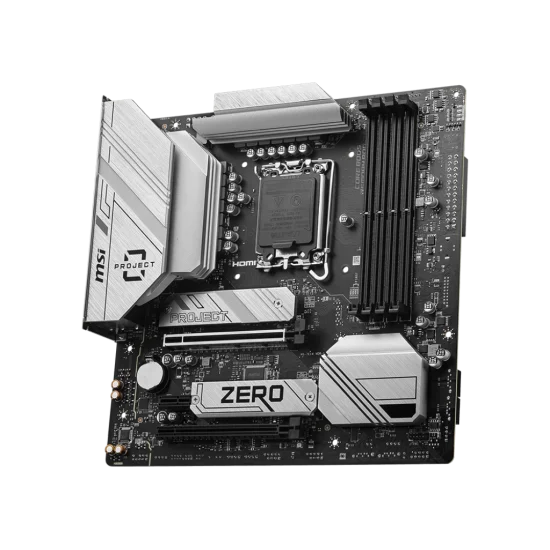

MSI B760M PROJECT ZERO LGA 1700 DDR5 mATX Motherboard The MSI B760M PROJECT ZERO LGA 1700 Motherboard redefines simplicity and performance with its innovative back-connect design, allowing for an immaculate front view and effortless cable management. [ez-toc] Absolute Simplicity with Back-Connect Design The B760M PROJECT ZERO's back-connect design moves power connectors, fan connectors, and other pin headers to the rear, ensuring a cleaner and neater front view. This design not only enhances the visual appeal of your motherboard, liquid cooler, and graphics card but also simplifies connector access. Effortless Cable Management Eliminate the complexity of routing cables from front to back. The back-connect design reduces cable management difficulty, making it easier to maintain a tidy and organized build. Supports Latest Intel Processors The B760M PROJECT ZERO is compatible with 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, thanks to its LGA 1700 socket. This ensures powerful performance for demanding applications and games. Advanced Power Delivery System Featuring a 12+1+1 Phase Duet Rail Power System with 75A DrMOS, the MSI B760M PROJECT ZERO provides robust power delivery to support heavy CPU loads. With dual 8-pin power connectors and Core Boost technology, this motherboard ensures stable and efficient power distribution.

1. Digital PWM IC: Provides precise power control.
2. 12-Phase Duet Rail Power System (75A DrMOS): Ensures high efficiency and stable power.
3. 1-Phase GT Power: Powers integrated graphics.
4. 1-Phase AUX Power: Supplies additional power to auxiliary components.

Integrated Cooling Features

• VRM Cooling: Extended heatsink, 7W/mK thermal pads, and additional choke thermal pads enhance thermal dissipation.
• PCB Cooling: 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation and reliability.
• SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

High-Speed Memory Support Supports up to 4 x DDR5 Dual Channel (7800+ MHz OC) with Memory Boost technology. MSI's BIOS features XMP profiles optimized by MSI OC LAB, allowing easy enabling of optimized memory speed and stability. Enhanced PCI-e Slots

1. Fortified PCI-e 5.0 x16 Slot: Secured with extra solder points and Steel Armor to support heavy graphics cards, providing electromagnetic interference shielding.
2. PCI-e Slots:
   • 1 x PCI-e 5.0/4.0/3.0 x16 slot (with Steel Armor)
   • 1 x PCI-e 4.0/3.0 x16 slot
   • 1 x PCI-e 3.0 x1 slot
