Hikvision DS-K1T8005EFWX-B Fingerprint Access Control
Available
Brand: N/A
SKU:SKU-6088
Short Description
- Model: DS-K1T8005EFWX-B
- Display: 2.4-inch LCD screen
- Max. 3000 cards, 3000 fingerprints and 100,000 events
- Supports ISAPI and ISUP 5.0 protocols
- Multiple methods, including fingerprint, card, and PIN, etc
Tk 0
1
Hikvision DS-K1T8005EFWX-B Fingerprint Access Control Terminal: Advanced Security Made Simple
In today's fast-evolving security landscape, choosing the right access control terminal can significantly impact an organization’s overall safety, convenience, and efficiency. The Hikvision DS-K1T8005EFWX-B Fingerprint Access Control Terminal is a feature-rich, cutting-edge security solution that blends innovation, reliability, and user-friendly functionality into a single compact device. Now available at Best Computer Hub, this model brings best-in-class access control features to both small and large enterprises across Bangladesh. [ez-toc]Why Choose Hikvision DS-K1T8005EFWX-B?
The Hikvision DS-K1T8005EFWX-B is designed to serve the modern demands of office buildings, factories, educational institutions, healthcare facilities, and other high-security premises. Its robust multi-authentication system and expansive capacity for user data make it one of the most versatile and dependable access terminals on the market.Key Features at a Glance:
- Multi-mode Authentication: Fingerprint, EM Card, and PIN code
- Large Storage Capacity: Supports 3,000 fingerprints and 3,000 EM cards
- High-Speed Recognition: Less than 0.2 seconds per fingerprint with 1:N comparison
- Operating System: Embedded Linux for stable performance
- Protocol Support: Compatible with ISAPI and ISUP 5.0 for seamless integration
- Display: 2.4-inch TFT LCD screen (320x240 resolution)
- Storage: Up to 100,000 event logs
- Connectivity: Wired (RJ-45 10/100M) and wireless (Wi-Fi 2.4GHz)
- Power Supply: 12V DC, ≤5W consumption
- Interface Ports: Lock control, exit button, door contact input, tamper alarm, USB port
- Audio: Built-in buzzer for real-time alerts
High-Security Performance with Speed and Accuracy
At the heart of the DS-K1T8005EFWX-B lies its advanced optical fingerprint sensor. This sensor supports both 1:1 and 1:N matching modes, ensuring fast and accurate identity verification. With a recognition time of less than 0.2 seconds, users experience seamless access without bottlenecks, even during peak hours. The fingerprint module uses sophisticated matching algorithms to reduce false acceptance and rejection rates, ensuring an exceptional accuracy rating above 99%. With this device installed, your organization can achieve top-tier biometric security and eliminate the vulnerabilities associated with traditional key systems.Smart User Management and Web Configuration
Ease of configuration is another hallmark of the Hikvision DS-K1T8005EFWX-B. Administrators can access the device using a standard web client interface, offering full control over user credentials, access schedules, and event monitoring. The terminal’s embedded Linux operating system ensures consistent performance and resistance against malware or unauthorized tampering. This makes it a safe and stable choice for critical security applications.Flexible Connectivity: Wired and Wireless Options
The terminal supports both wired (RJ-45 Ethernet) and wireless (Wi-Fi 2.4G, 802.11b/g/n) network configurations. Whether your site has existing wired infrastructure or you require a more flexible wireless setup, the DS-K1T8005EFWX-B accommodates both scenarios. Wi-Fi functionality also includes Access Point (AP) mode, allowing the terminal to serve as a central hub in decentralized installations. This makes it ideal for use in large campuses or construction sites where permanent networking infrastructure may not yet be in place.Integration-Ready for Modern Access Control Systems
With built-in support for ISAPI and ISUP 5.0 protocols, the DS-K1T8005EFWX-B is highly adaptable. It integrates smoothly with a wide range of third-party security software and hardware systems. Whether you're upgrading an existing security setup or starting fresh, this terminal will work efficiently within your broader ecosystem of surveillance cameras, alarms, and other control modules.Designed for Real-World Use Cases
Security devices need to perform reliably in diverse environmental and operational conditions. The DS-K1T8005EFWX-B is engineered to function within a wide operating temperature range and includes physical interfaces for full integration:- Lock Control Interface: Directly control electric or magnetic locks
- Exit Button Input: Allow manual exits through secured doors
- Door Contact Input: Monitor door open/close status
- Tamper Alarm Input: Alert in case of unauthorized tampering
- USB Port: Easily transfer data or update firmware
Intuitive User Interface and Experience

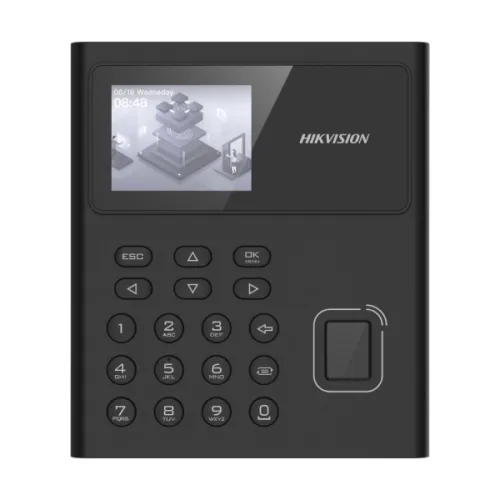

The device features a vibrant 2.4-inch TFT LCD color screen, displaying user prompts, time/date, and access status with clarity. Navigation through menus is smooth and intuitive, minimizing the learning curve for both administrators and users. The built-in buzzer acts as an effective feedback mechanism, confirming successful authentication or signaling access denial. This enhances the overall user experience while maintaining high security.Energy-Efficient and Compact
With a power consumption of ≤5W and a standard 12V DC input, the DS-K1T8005EFWX-B is energy-efficient and cost-effective for long-term deployment. Its compact design ensures it can be easily mounted on walls or entrance panels without occupying excessive space.Security and Reliability Backed by Best Computer
When you choose to purchase the Hikvision DS-K1T8005EFWX-B from Best Computer, you're not just getting a product — you're investing in a complete solution backed by expert guidance, genuine products, and after-sales support. Best Computer Hub is one of the most trusted names in Bangladesh for security and IT infrastructure, offering an extensive portfolio of biometric access control devices from top global brands like Hikvision. Whether you prefer to shop online or visit a physical store, Best Computer Hub makes the process simple, convenient, and affordable.Technical Specifications
| Feature | Specification |
|---|---|
| Display | 2.4" TFT LCD (320x240) |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 (EM Card) |
| Event Storage | 100,000 Logs |
| Authentication Modes | Fingerprint, Card, PIN |
| Recognition Speed | < 0.2 Seconds |
| Accuracy | > 99% |
| OS | Linux Embedded |
| Networking | RJ-45 (10/100M), Wi-Fi 2.4GHz |
| Audio | Built-in Buzzer |
| Interfaces | Lock, Exit Button, Door Contact, Tamper Alarm, USB |
| Power Supply | 12V DC, ≤5W |
| Protocols Supported | ISAPI, ISUP 5.0 |
| Operating Temperature | -10°C to +55°C |
