FiberFox Mini 3S Active V-Groov Clade Splicer Machine
Available
Brand: N/A
SKU:SKU-565
Short Description
- Model: FiberFox Mini 3S
- Weight: 1.1Kg
- Splicing Mode: 139
- Average Loss: 0.03 dB
- Splicing Time: 8.0 sec
Tk 143,500
1

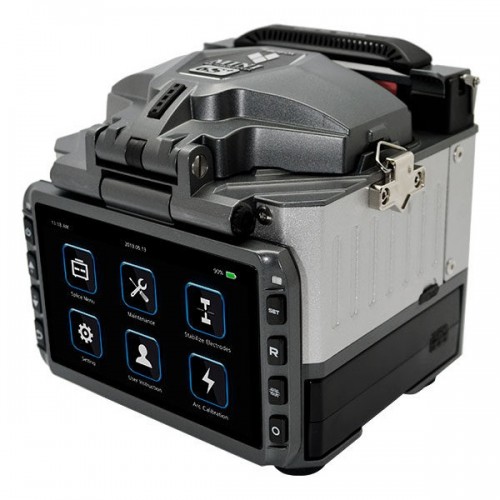

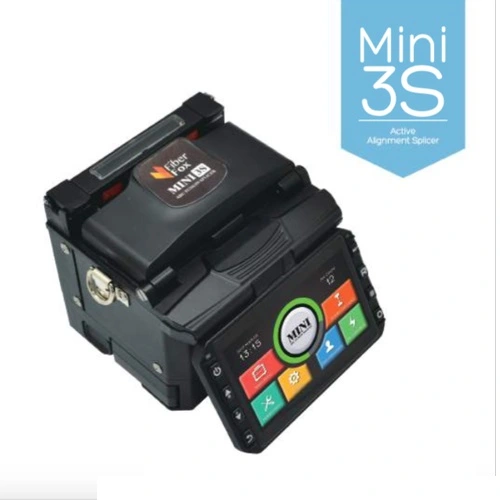

FiberFox Mini 3S Active V-Groove Clade Splicer Machine
The FiberFox Mini 3S Active V-Groove Clade Splicer Machine is an advanced, highly efficient splicer designed for precision fiber optic work. Featuring Digitalized Active Alignment (DAA), this machine ensures minimal splicing loss and optimal performance across various fiber types. [ez-toc]Key Features and Specifications

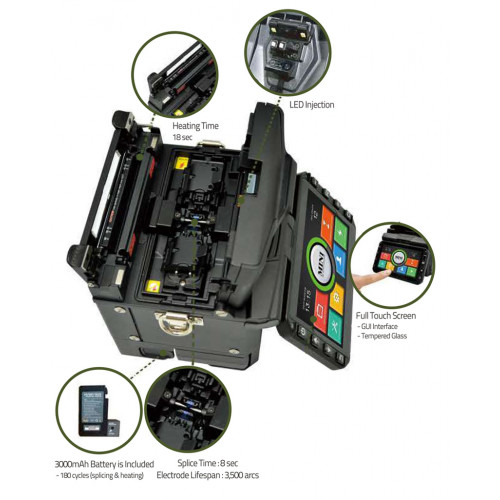

- Splicing Performance:
- Average loss: SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB)
- Splicing time: SM Mode: 8 seconds
- Heating time: 18 seconds
- Splicing Modes:
- 139 modes (Pre-set: 11 / User set-up: 128)
- Attenuation range: 0.1 ~ 20 dB
- Compatible Fiber Types:
- SM (ITU-T G652 & G.657)
- MM (ITU-T G.651)
- DS (ITU-T G.653)
- NZDS (ITU-T G.655)
- Coating diameter: 100 to 3,000um
- Durability and Storage:
- Electrode lifespan: >3,500 arcs
- Storage capacity: Up to 10,000/20,000 images
- Advanced Detection:
- Dual CCD camera with LED emitting system
- LED spotlight for fiber illumination
- User Interface:

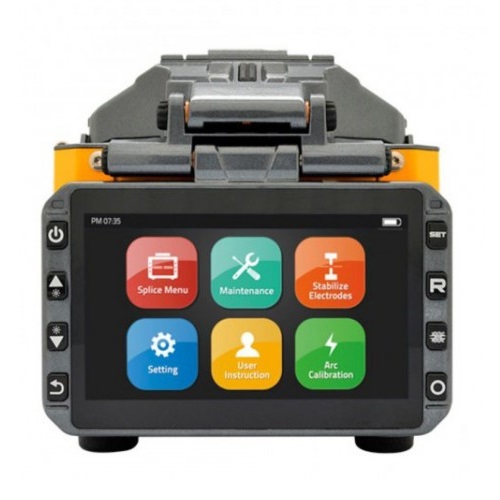

- 4.3" color LCD monitor with tempered glass touch screen
- Power and Battery:
- Battery: Li-ion 11.1V 3000mAh, 200 cycles (Splicing & Heating)
- Power supply: AC 100-240V input or DC 12.6V 1.8A
