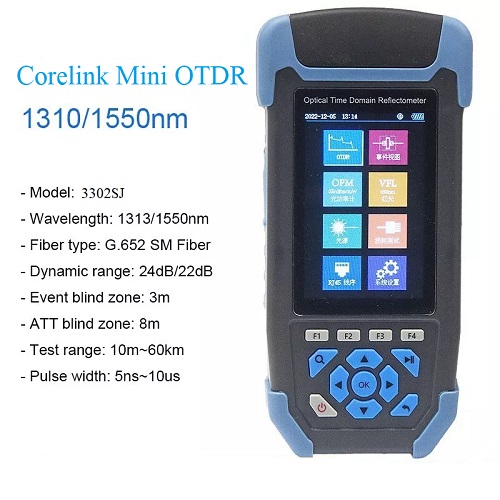

Corelink Mini OTDR
Available
Brand: N/A
SKU:SKU-6221
Short Description
- Model: 3302-SJ-Pro
- Brand: CoreLink
- Category: Network Testing Tools
- Sub Category: OTDR
- Warranty: 1 Year
- Service: 1 Year
Tk 35,000
1
Corelink Mini OTDR Price in Bangladesh – Buy from Best Computer Hub
If you're in search of a compact, efficient, and reliable OTDR (Optical Time-Domain Reflectometer) for FTTx and access network installation or maintenance, the Corelink Mini OTDR is an excellent choice. Available now at Best Computer Hub, this advanced device is designed for professionals who require accurate, real-time fiber optic testing tools in a rugged and portable design. [ez-toc]What is the Corelink Mini OTDR?
The Corelink Mini OTDR is a high-performance fiber optic tester that allows technicians and engineers to diagnose and measure critical fiber optic parameters such as:- Fiber breakpoint location
- Total fiber length
- Signal loss
- Input light detection
Why Choose the Corelink Mini OTDR?
When it comes to OTDR testing, reliability, accuracy, and ease of use are essential. Here are the reasons why the Corelink Mini OTDR, available at Best Computer Hub, is one of the best options for fieldwork professionals in Bangladesh:✅ All-in-One Testing Device
This compact fiber tester combines 8 essential functions in one highly integrated unit:- OTDR
- Event Map
- Optical Power Meter (OPM)
- Stable Light Source (LS)
- Visual Fault Locator (VFL)
- Cable Sequence Proofreading
- Insertion Loss (IL) Measurement
- LED Lighting
✅ Rugged and Portable Design

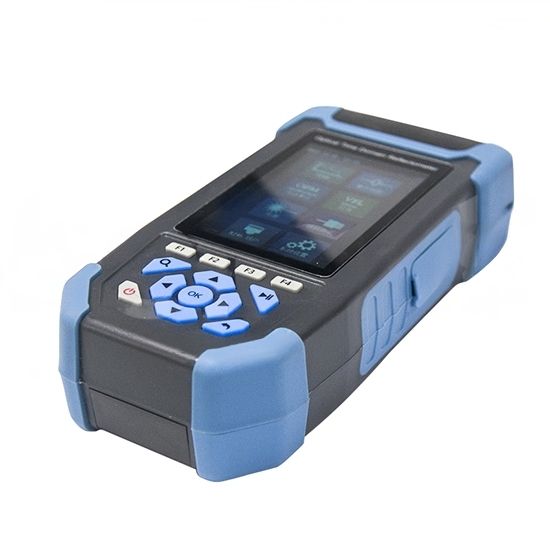

The device is housed in a newly designed plastic shell that is shock-proof and drop-resistant—a key feature for technicians working in rough environments. Weighing less than 350g and with dimensions of just 173 x 82 x 37mm, it’s incredibly portable and fits easily into your toolkit.✅ High Storage and Connectivity
The Corelink Mini-Pro offers 600 internal memory slots for test data, expandable via TF card and USB storage. Transfer data effortlessly to your PC for in-depth analysis and documentation.✅ Long-Lasting Battery for Field Use
Equipped with a 4000mAh lithium battery, the Mini-Pro OTDR offers up to 20 hours of standby time and over 12 hours of continuous operation. Its USB charging support adds to the convenience, letting you charge it via power banks or adapters even while on the go.✅ Intuitive User Interface
The 3.5-inch colorful LCD screen displays test results clearly, allowing for easier interpretation and reduced testing errors. With one-key automatic testing, even beginners can use the device with minimal training.Corelink Mini OTDR Key Specifications
Let’s dive into the detailed technical specifications of this powerful testing tool:📍 OTDR Module
- Wavelength: 1310/1550nm (dual-wavelength testing)
- Fiber Type: G.652 SM Fiber
- Dynamic Range: 24dB (1310nm) / 22dB (1550nm)
- Event Blind Zone: 3m
- ATT Blind Zone: 8m
- Test Range: 10m to 60km
- Pulse Width: 5ns to 10µs
- Ranging Accuracy: ±(1m + Sampling Interval + 0.005% x Test Distance)
- Loss Accuracy: ±0.2dB/dB
- Sampling Points: 16k to 128k
- Sampling Resolution: 0.05m to 8m
- Reflection Accuracy: ±3dB

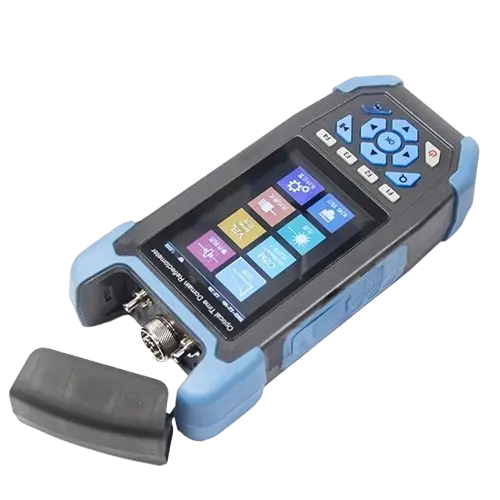

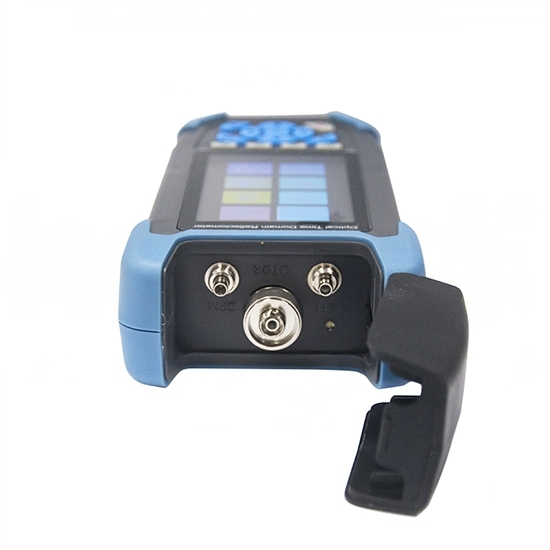

- Connector Type: FC/APC (Interchangeable SC, ST)
- File Format: SOR Standard File Format
📍 Optical Power Meter (OPM)
- Wave Range: 800nm to 1700nm
- Test Range: -50dBm to +26dBm
- Uncertainty: ±5%
- Interface Type: Universal Joint (FC/SC/ST)
- Frequency Identification: CW/270/330/1k/2kHz
- Calibration Wavelengths: 850/1300/1310/1490/1550/1577/1625nm
📍 Stable Light Source (LS)
- LD Type: FP-LD
- Output Wavelength: 1310/1550nm
- Output Power: ≥-5dBm
- Modulation Frequency: 270/330/1k/2kHz
- Power Stability: ±0.5dB over 15 minutes after warm-up
- Connector Type: FC/APC (Interchangeable SC, ST)
📍 Visual Fault Locator (VFL)
- Wavelength: 650nm ±20nm
- Output Power: ≥10mW
- Operation Modes: CW/1Hz/2Hz
- Connector Support: FC/SC/ST
📍 General Features
- Display: 3.5" Color LCD
- Data Interface: Micro USB
- External Storage: TF Card
- Battery: 4000mAh Polymer Lithium
- Power Adapter: 5V DC, 2A
- Battery Life: Up to 12 hours of testing
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -40°C to +70°C
- Humidity Tolerance: 0 – 95% (Non-condensing)
What’s in the Box?
When you purchase the Corelink Mini OTDR from Best Computer, you receive everything you need to get started immediately:- 1x Corelink Mini-Pro OTDR Host
- 1x Power Adapter
- 1x USB Data Cable
- 1x SC/APC Connector
- 1x CD (Includes Analysis Software + User Manual)
- 1x Printed User Manual
- 1x Calibration Certificate
- 1x Qualification Certificate/Service Guarantee Card
- 1x Clean Cotton Slices
- 1x Durable Instrument Bag
Who Should Buy the Corelink Mini-Pro OTDR?
The Corelink Mini-Pro OTDR is perfect for:- Telecom Technicians working on fiber optic installations and maintenance
- FTTx Service Providers conducting routine network troubleshooting
- IT Infrastructure Teams maintaining fiber connections across enterprise networks
- Educational Labs requiring affordable and versatile optical testing solutions
