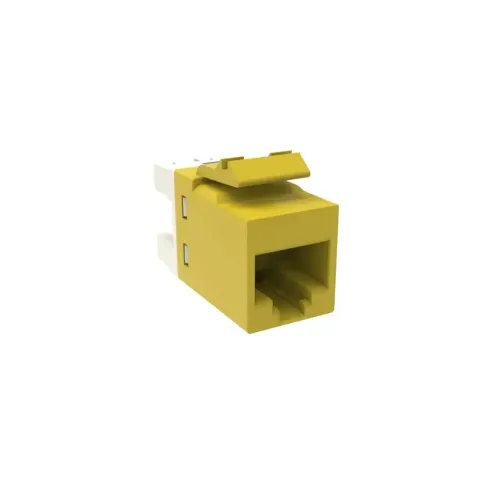

CommScope SL110-6-YL Cat 6 RJ45 Modular Jack
The
CommScope SL110-6-YL Cat 6 RJ45 Modular Jack is a versatile connectivity solution designed to support both stranded and solid wires. Meeting the rigorous standards of
ISO/IEC 11801 Class E and
ANSI/TIA Category 6, this modular jack ensures superior network performance. It features an inverted jack face and a yellow color-coded outlet, making it compatible with
SL Series panels and faceplates for streamlined installation.
[ez-toc]
Features:
This jack supports a minimum of
200 punch-downs using
IDC termination and the
SL Termination tool, simplifying the termination process. Its robust design complies with
IEEE 802.3bt Type 4 (90 W) for remote powering and meets
IEC 60512-99-002 standards for unmating under electrical load. Built to endure over
3000 plug-to-jack mating cycles, the SL110-6-YL ensures lasting durability.
The
dielectric withstand voltage of
1,500 Vac (conductive surface) and
1,000 Vac (contact-to-contact) further enhances its reliability. The jack supports solid conductor gauges from
24 to 22 AWG and stranded gauges from
26 to 24 AWG, with a maximum cable diameter of
5.8 mm and an insulated conductor diameter of
1.45 mm.
Featuring a minimum insulation resistance of
500 MOhm and a contact resistance of less than
100 mOhm, the SL110-6-YL delivers dependable, high-quality connectivity. Crafted from durable polycarbonate, it includes
beryllium copper contacts plated with
1.27 µm of gold, ensuring longevity and optimal performance in demanding network environments.
This jack is an ideal choice for maintaining reliable, high-speed connections in both commercial and industrial applications.
What is the price of CommScope Cat 6 RJ45 Modular Jack in Bangladesh?
Lastly, You can buy this product from
Best Computer Hub Ltd. The latest
CommScope SL110-6-YL Cat 6 RJ45 Modular Jack in Bangladesh is
315৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
