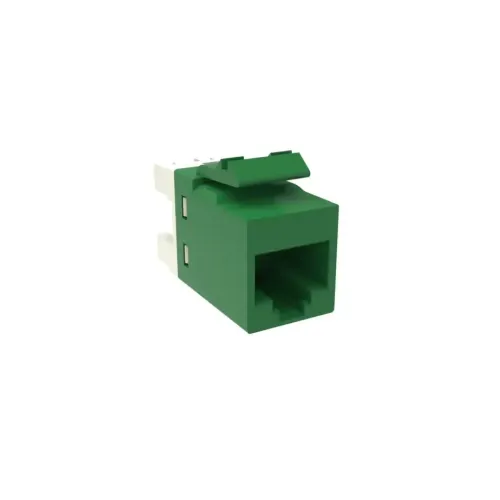

CommScope SL110-6-GN Cat 6 RJ45 Modular Jack
The
CommScope SL110-6-GN Cat 6 RJ45 Modular Jack offers reliable connectivity for both stranded and solid wires. Designed to meet
ISO/IEC 11801 Class E and
ANSI/TIA Category 6 standards, this modular jack ensures top-tier network performance. It features an inverted jack face and a green color-coded outlet that integrates seamlessly with
SL Series panels and faceplates, ensuring easy installation.
[ez-toc]
Features:
With support for over
200 punchdowns using
IDC termination and the
SL Termination tool, the SL110-6-GN simplifies the termination process. Its rugged construction complies with
IEEE 802.3bt Type 4 (90 W) applications and meets
IEC 60512-99-002 standards for unmating under electrical load. This durability extends through
3000 plug-to-jack mating cycles, making it ideal for long-term use in demanding environments.
The
dielectric withstand voltage of
1,500 Vac (conductive surface) and
1,000 Vac (contact-to-contact) guarantees electrical safety and performance. The SL110-6-GN supports solid conductor gauges from
24 to 22 AWG and stranded conductor gauges from
26 to 24 AWG, accommodating cable diameters up to
5.8 mm and insulated conductor diameters up to
1.45 mm.
With a minimum insulation resistance of
500 MOhm and a maximum contact resistance of
100 mOhm, this jack offers dependable, high-quality connections. Its polycarbonate construction, paired with
beryllium copper contacts plated with
1.27 µm of gold, ensures long-lasting performance and reliability.
Perfect for high-performance networks, the CommScope SL110-6-GN is an excellent choice for commercial and industrial applications requiring consistent and durable connectivity.
What is the price of CommScope Cat 6 RJ45 Modular Jack in Bangladesh?
Lastly, You can buy this product from
Best Computer Hub Ltd. The latest
CommScope Cat 6 RJ45 Modular Jack in Bangladesh is
315৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
