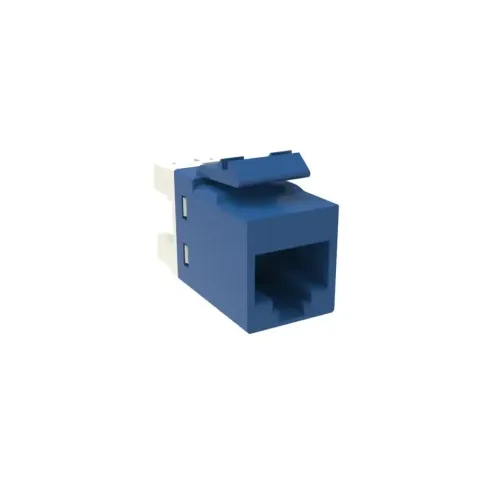

CommScope SL110-6-BL Cat 6 RJ45 Modular Jack
The
CommScope SL110-6-BL Cat 6 RJ45 Modular Jack is a premium networking solution designed to meet the stringent demands of modern data infrastructure. This blue jack is engineered for high performance, supporting unshielded cable types and fully compliant with
ANSI/TIA Category 6 standards. With its
inverted jack face, it is ideal for standard outlet applications and is compatible with both solid and stranded conductors, ensuring flexibility across a wide range of installations.
[ez-toc]
Specifications:
Designed for easy integration, the
CommScope SL110-6-BL can be installed on
SL Series panels and faceplates, and it supports both
T568A and T568B wiring configurations. The jack requires an
SL Termination tool for precise IDC-style terminations, capable of handling up to
200 punch downs. It also meets the
ISO/IEC 11801 Class E and
ANSI/TIA-568.2-D transmission standards, ensuring reliable performance.
Features:
Measuring
16.13 mm in height,
14.48 mm in width, and
30.48 mm in depth, this modular jack fits seamlessly into a
14.78 x 20.07 mm panel cutout with a
1.6 mm panel thickness. It supports insulated conductors up to
1.45 mm and cables with a maximum diameter of
5.8 mm. The jack's
1.27 µm thick gold contact plating ensures optimal connectivity for
solid 24-22 AWG wires and
stranded 26-24 AWG conductors.
Built to handle
Power over Ethernet (PoE) applications, the
SL110-6-BL supports
IEEE 802.3bt Type 4 (90 W), making it a perfect choice for remote powering. Its
polycarbonate construction,
tin-plated termination contacts, and
gold-plated connections ensure durability, withstanding
3,000 plug-to-jack mating cycles while maintaining superior performance.
What is the price of CommScope Cat 6 RJ45 Modular Jack in Bangladesh?
Lastly, You can buy this product from
Best Computer Hub Ltd. The latest
CommScope SL110-6-BL Cat 6 RJ45 Modular Jack in Bangladesh is
315৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
