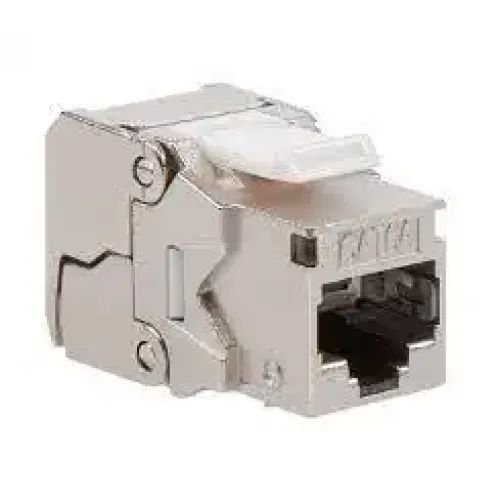

CommScope 2153354-1 RJ45 Modular Jack
The
CommScope 2153354-1 RJ45 Modular Jack is a high-performance, shielded connector designed for
Category 6A cabling systems, meeting
ANSI/TIA-568.2-D and
ISO/IEC 11801 Class EA standards for superior transmission performance. This modular jack supports both
T568A and
T568B wire configurations, making it versatile for solid and stranded conductor types. Its
IDC termination and standard outlet design ensure easy and reliable installation, perfect for demanding networking environments.
[ez-toc]
Features:
Constructed from durable polycarbonate, the CommScope 2153354-1 features
beryllium copper contacts with a
1.27 µm gold plating, enhancing its conductivity and durability for long-term use. Compact and efficient, this modular jack measures
21.5 mm in height,
17.2 mm in width, and
38.3 mm in depth, making it suitable for tight spaces. It accommodates wires with a maximum diameter of
9 mm and is designed for panels with a recommended thickness of
1.6 mm.
Built to handle
IEEE 802.3bt Type 4 (90 W)
Power over Ethernet (PoE) applications, the CommScope 2153354-1 demonstrates exceptional durability with over
3000 plug-to-jack mating cycles, making it highly reliable for long-term usage. The modular jack supports conductor gauges of
24 AWG for stranded wires and
26 to 22 AWG for solid wires, ensuring compatibility with various cabling systems.
While it lacks an inbuilt dust cover, the jack adheres to
IEC 60603-7 standards for plug-to-jack mating cycles, guaranteeing consistent performance. Designed for high-speed data transfer and robust construction, the
CommScope 2153354-1 RJ45 Modular Jack is an ideal choice for demanding applications in both commercial and industrial networks.
What is the price of CommScope 2153354 RJ45 Modular Jack in Bangladesh?
Lastly, You can buy this product from
Best Computer Hub Ltd. The latest
CommScope 2153354-1 RJ45 Modular Jack in Bangladesh is
600৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
