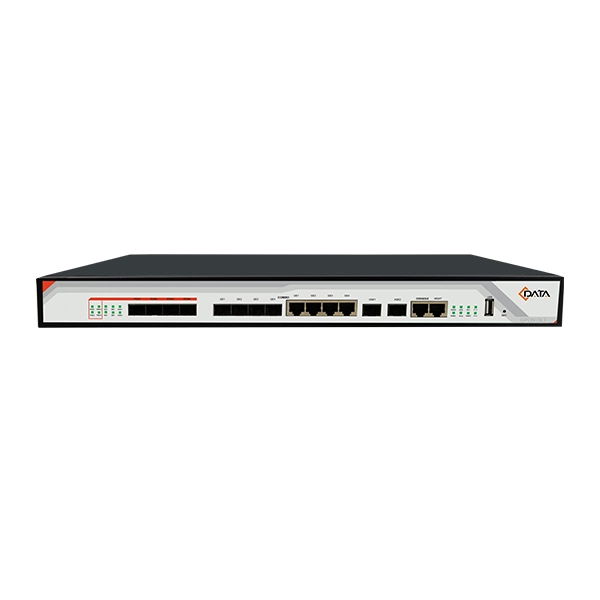

C-Data FD1608S-B0 XPON 8 PORT OLT
Available
Brand: N/A
SKU:SKU-6145
Short Description
- Meet the relative standard of ITU-T G.984/G.988 and GPON in the Chinese Communication Industry
- Supportive of OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol
- 1U height 8PON OLT product in the compact design of Pizza-box
- A complete PON protection switching function
- Layer 2 switching function
- QOS Guarantee
- Easy-to-Use management system
Tk 0
1
C-Data FD1608S-B0 XPON 8 PORT OLT Price in Bangladesh – Available at Best Computer Hub
Are you searching for a high-performance and reliable XPON OLT for your networking needs? Look no further than the C-Data FD1608S-B0 XPON 8 PORT OLT, a powerful optical line terminal that combines GPON and EPON technologies in a compact design. Whether you’re an ISP expanding your FTTH network or a business looking for scalable fiber solutions, the FD1608S-B0 offers excellent features, outstanding performance, and a competitive price in Bangladesh. [ez-toc]✅ Latest Price of C-Data FD1608S-B0 XPON 8 PORT OLT in Bangladesh
The latest price of C-Data FD1608S-B0 XPON 8 PORT OLT in Bangladesh is available at Best Computer, your trusted destination for networking equipment and fiber-optic solutions. Visit our online store or physical showroom to get the best deals, original products, and reliable after-sales service.Overview of C-Data FD1608S-B0 XPON 8 PORT OLT
The C-Data FD1608S-B0 is a next-generation XPON OLT (Optical Line Terminal) designed to support high-density fiber networks using either GPON or EPON technology. It is built to cater to the needs of ISPs, telecom operators, and enterprises deploying FTTx solutions across urban and rural areas. This device supports 8 PON ports, which can connect to hundreds of ONTs (Optical Network Terminals) simultaneously. With its advanced switching capacity, robust management features, and flexible deployment options, the FD1608S-B0 offers exceptional value for high-speed internet service providers and network infrastructure managers.Key Features of C-Data FD1608S-B0 XPON 8 PORT OLT
🔸 Hybrid GPON/EPON Compatibility
One of the standout features of the C-Data FD1608S-B0 is its XPON dual-mode support, meaning it is compatible with both GPON (Gigabit Passive Optical Network) and EPON (Ethernet Passive Optical Network) standards. This gives network administrators the flexibility to choose or migrate between technologies based on deployment requirements.🔸 8 PON Ports for High-Capacity Connections
With 8 PON ports, this OLT allows simultaneous fiber connections to multiple ONUs/ONTs. It supports up to 1024 ONUs (using 1:128 split ratio), making it ideal for dense urban areas and expanding networks.🔸 High Switching and Forwarding Capacity
The FD1608S-B0 boasts a non-blocking switching capacity of 48Gbps and a packet forwarding rate of 35.71Mpps, ensuring seamless data transmission even during peak usage hours.🔸 Layer 2 Switching Capabilities
Equipped with full Layer 2 switching features, this OLT supports VLAN, STP, RSTP, MSTP, IGMP Snooping, port mirroring, QoS, ACLs, and more—perfect for managing a large and complex network.🔸 Powerful Network Management
Manage your network efficiently using CLI, Web interface, SNMP, or Telnet. The OLT also supports multiple management functions like configuration backup, firmware upgrades, and remote access, making it ideal for professional setups.🔸 Redundant Power Supply Support
To enhance system reliability, the OLT offers optional support for dual power supplies. This helps avoid downtime due to single-point power failures.Technical Specifications of C-Data FD1608S-B0
| Specification | Details |
|---|---|
| PON Ports | 8 XPON (GPON/EPON) |
| Uplink Ports | 4 GE (SFP) + 4 GE (RJ45) + 2 10GE (SFP+) |
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.71 Mpps |
| Management Interface | CLI, Web, SNMP, Telnet |
| Max ONU Support | Up to 1024 ONUs (1:128 split ratio) |
| Power Supply | Dual Power Support (optional) |
| Power Consumption | ≤ 45W |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 442mm × 320mm × 44mm (1U Standard) |
| Weight | 4.5 kg (approx.) |
Why Buy C-Data FD1608S-B0 XPON 8 PORT OLT from Best Computer Hub?
At Best Computer Hub, we understand the importance of reliable networking hardware in today’s digital world. When you choose Best Computer Hub for your OLT needs, you get:- ✅ 100% Genuine Product
- ✅ Manufacturer Warranty
- ✅ Best Price in Bangladesh
- ✅ Expert Technical Support
- ✅ Fast Nationwide Delivery
- ✅ After-Sales Service & Guidance
Use Cases for C-Data FD1608S-B0 XPON OLT
This OLT is a perfect choice for:- 🌐 Internet Service Providers (ISPs): Deploy high-speed broadband services using FTTH/FTTB.
- 🏢 Enterprise Networks: Establish centralized fiber connectivity across multiple office locations.
- 🏫 Educational Institutions: Provide high-bandwidth internet access to large campuses.
- 🏙️ Housing Complexes/Smart Cities: Support smart infrastructure with scalable connectivity.
- 🏥 Hospitals & Healthcare Networks: Ensure seamless data transmission for critical applications.
Installation and Setup Guidance
Best Computer Hub also offers installation support for businesses and ISPs looking to deploy the C-Data FD1608S-B0. Our certified technicians ensure:- Proper rack-mount setup (1U design)
- Correct uplink configuration
- ONT registration and provisioning
- Network segmentation (VLAN setup)
- Firmware update & performance optimization
